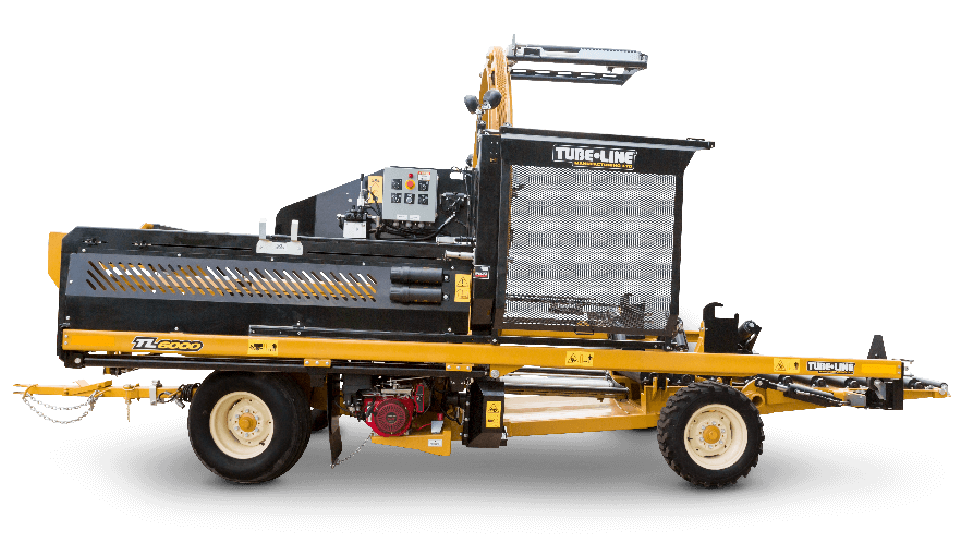

The TL6000 Balewrapper is ideal for producers or custom farmers needing a solution for both round and square bales.

Film Snap Feature Image

Film Snap - Patent Pending

Standard on all inline Balewrapper models, Tubeline’s Film Snap easily cuts wrap with a single action. Press and hold the Film Snap plunger located beside the operator’s panel until both the tensioners pass, triggering the cutting action. The Film Snap bar snaps into action safely cutting the wrap without stopping the cycle.

3 Year Warranty Feature Image

3 Year Warranty

Inline wrappers carry a 3 Year Limited Warranty. For more information please contact Tubeline Manufacturing.

ECV Exclusive Features

  • Soft Start
  • Bale Counter (Lifetime)
  • Bale Counter (Resettable)
  • Bale Presets
  • Large Easy to Read Display
  • Remote Engine Start
  • Self-Diagnostics
  • Single Joystick Control to drive/steer

Other Standard Features

  • Main Control Panel Wired for Field Installed Options
  • Safety Shut Off Switch on Guards
  • Safety Shut Off Switch on Panel
  • Retractable Tongue
  • Folding Tongue
  • Low Oil Alert on Engine
  • Spark Arrestor on Engine
  • Hydraulic Manifold
  • Hydraulic Steering
  • Temperature Gauge on Hydraulic Tank
  • 25L / 6.6 USG Fuel Tank with Fuel Pump
  • Limit Switches
  • Adjustable Stroke Length on Charge Table
  • Round to Square Bale Wrapper Conversion
  • Roller Bed Locking Lever
  • Electric over Hydraulic Controls
  • Fully Automatic Cycling
  • Automatically Idles Down When Cycle Completed
  • Drive Wheel
  • 30" Pre-Tensioners
  • Wrap Carrier
  • Lock Pin (Hoop)
  • Roller Wheels
  • Push Ram
  • Push Ram Cylinders
  • Cross Tube Unloading (to push off last bale) Patented
  • King Pins with Tapered Bearings
  • Cam Brakes
  • Road Lights
Specifications TL 6000 AX2 TL 6000 ECV
Overall Length 20' 20'
Width 9' 5" 9' 5"
Height 9' 10" 9' 10"
Weight 6,300 lbs. 6,300 lbs.
Power 13Hp Honda 13Hp Honda
Electric Start Standard Standard
Alternator 18 Amp. 18 Amp.
Hydraulics Self-contained Self-contained
Controls Electric over Hydraulic Electric over Hydraulic
Tires (2) 11L x 15 8 Ply
(2) 27 x 10.5 Traction
(2) 11L x 15 8 Ply
(2) 27 x 10.5 Traction
Tires with Power Drive Same as Above Same as Above
Quick Start Leveling Quick Deck Adjust Quick Deck Adjust
Brakes (Compactor) Deck Tight Pack Deck Tight Pack
Steering Electric over Hydraulic Electric over Hydraulic
Emergency Stop E Stop Button E Stop Button
Hydraulic Tail Gate N/A - Fixed N/A - Fixed
Transport Lights Standard Standard
Bale
Round Up to 6' Up to 6'
Square (Single) Up to 3' x 3' x 6' Up to 3' x 3' x 6'
Film Stretcher (2) 30" x 55% (2) 30" x 55%
Bale Alignment Adjustable Adjustable
Bale Guide Rollers Standard Standard
Hoop Speed Adj. Flow Control Valve Adj. Flow Control Valve
Cycle Times*
5' Round (66" Cycle Length) 29 sec. 29 sec.
4' Round (54" Cycle Length) 23 sec. 23 sec.
3' Square (42" Cycle Length) 17 sec. 17 sec.

* NOTE: BaleWrappers applying 8 layers - equipped with 20HP Engine, High flow pump, and Twin Wrap Kit.

20 Horsepower Honda Engine Feature Image

20HP Honda Engine

Honda Engines power the fluid through the hydraulic system ensuring efficient flow from the reservoir to valve body. The 20HP engine comes with a high flow pump providing an ample supply of fluid to the valve body.

Remote Steering and Shutdown Kit Feature Image

Remote Steering and Shutdown Kit

This rugged remote allows you to start, shut down, and control your wrapper remotely.

Remote Engine Start Feature Image

Remote Engine Start

This switch, located on the control panel, toggles between the engine starting with the key directly, or by using the remote.

Dual Hydraulic Power Drive Feature Image

Dual Hydraulic Power Drive

The dual hydraulic power drive gives your wrapper's drive system more power to get through tough to drive through areas.

Night Working Light Kit (Halogen) Feature Image

Night Working Light Kit (Halogen)

The night working light kit extends your working hours to ensure you get all your wrapping done no matter when you start.

Night Working Light Kit (LED) Feature Image

Night Working Light Kit (LED)

The night working light kit extends your working hours to ensure you get all your wrapping done no matter when you start.

Film Sensor Feature Image

Film Sensor

The film sensor automatically shuts down the wrapper hoop when it detects a break in the film, or when the wrapper runs out of wrap.

Twin Wrap Kit Feature Image

Twin Wrap Kit

Tubeline's Twin Wrap Kit holds two rolls of film and passes them through a single stretcher. This activates the wraps' bonding compound to form a strong 2-Ply layer of film that stands up to tough hay stalks and folds them over helping to prevent piercing of the wrap.

By combining two sets of two rolls for a total of four, Tubeline's twin wrap kit provides all the same protection as four separate stretchers with the additional benefit of producing a more durable bonded 2-Ply film that stands up better than four single ply layers.

Laser Steering System

Laser Steering System

Optional on all AX2 inline wrappers, the laser steering system is designed to automatically steer the wrapper, spacing your bale rows consistently every time.

Errors and omissions excepted. Specifications and images on this page are subject to change without notice. For current information on all of our products, please contact Tubeline Manufacturing.
