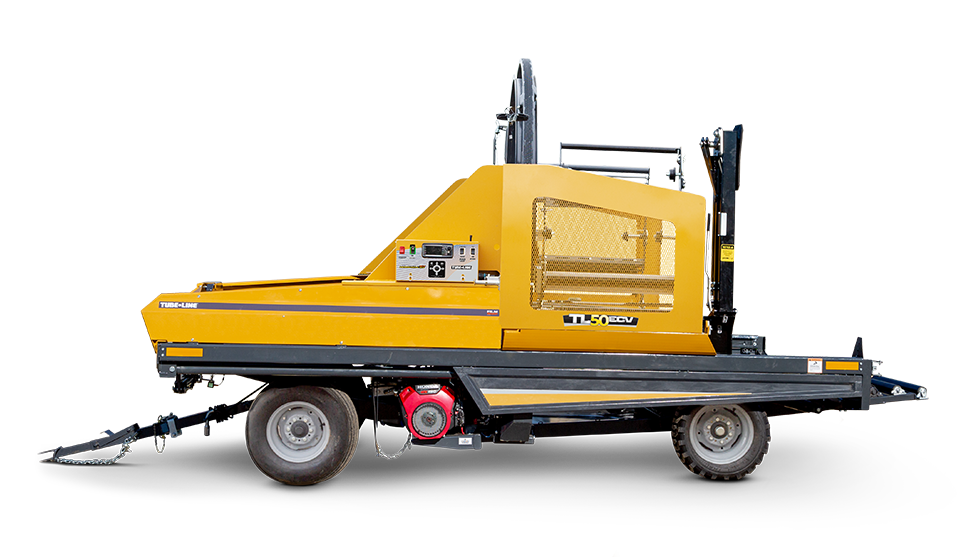

The new generation of TL Series inline bale wrappers from Tube-Line are built to provide producers and custom operators with high efficiency and proven reliability. To ensure that everyone can reap the benefits of the high moisture hay, Tube-Line BaleWrappers are available in multiple configurations to suit your needs and your budget.
Pre-Tensioners
To create the 55% (approx.) stretch of the plastic, the pre-tensioners are knurled which allows them to grip and pull the plastic between the rollers activating the bonding agent in the film.
Film Snap - Patent Pending
Standard on all inline Balewrapper models, Tubeline’s Film Snap easily cuts wrap with a single action. Press and hold the Film Snap plunger located beside the operator’s panel until both the tensioners pass, triggering the cutting action. The Film Snap bar snaps into action safely cutting the wrap without stopping the cycle.
3 Year Warranty
Inline wrappers carry a 3 Year Limited Warranty. For more information please contact Tubeline Manufacturing.
ECV Exclusive Features
- Soft Start
- Bale Counter (Lifetime)
- Bale Counter (Resettable)
- Bale Presets
- Large Easy to Read Display
- Remote Engine Start
- Self-Diagnostics
- Single Joystick Control to drive/steer
Other Standard Features
- Main Control Panel Wired for Field Installed Options
- Safety Shut Off Switch on Guards
- Safety Shut Off Switch on Panel
- Retractable Tongue
- Folding Tongue
- Electric Start 13HP Honda Gas Engine (18 Amp Charging System)
- Low Oil Alert on Engine
- Spark Arrestor on Engine
- Hydraulic Manifold
- Hydraulic Steering
- Temperature Gauge on Hydraulic Tank
- 25L / 6.6 USG Fuel Tank with Fuel Pump
- Limit Switches
- Adjustable Stroke Length on Charge Table
- Electric over Hydraulic Controls
- Fully Automatic Cycling
- Automatically Idles Down When Cycle Completed
- Drive Wheel
- 34" Pre-Tensioner Carriers
- Lock Pin (Hoop)
- Roller Wheels
- Push Ram
- Push Ram Cylinders
- Cross Tube Unloading (to push off last bale) Patented
- King Pins with Tapered Bearings
- Road Lights
- 3-Year Warranty
- Guide Rollers on Discharge Ramp
- Quick Start Hydraulic Cam Axle
- Lug Tires on Rear Axle
- Quick Start Power Jack
| Specifications | TL50 LSV | TL50 ECV |
|---|---|---|
| Overall Length | 18' | 18' |
| Width | 9' 5" | 9' 5" |
| Height | 9' 10" | 9' 10" |
| Weight | 6,300 lbs. | 6,300 lbs. |
| Power | 13 HP Honda c/w 11 GPM Pump | 13 HP Honda c/w 11 GPM Pump |
| Electric Start | Standard | Standard |
| Alternator | 18 Amp. | 18 Amp. |
| Hydraulics | Self-contained | Self-contained |
| Controls | Electric over Hydraulic (LSV) | Electronic Control Valve (ECV) |
| Tires | (2) 11L x 15 8 Ply (2) 27 x 10.5 Traction |
(2) 11L x 15 8 Ply (2) 27 x 10.5 Traction |
| Quick Start Leveling | Quick Deck Adjust | Quick Deck Adjust |
| Compaction | Deck Tight Pack | Deck Tight Pack |
| Steering | Hydraulic | Hydraulic |
| Emergency Stop | E Stop Button | E Stop Button |
| Roll Off Tail | Fixed | Fixed |
| Transport Lights | Standard | Standard |
| Bale | TL50 LSV | TL50 ECV |
| Round | Up to 6' | Up to 6' |
| Square | N/A | N/A |
| Film Stretcher | (2) 30" x 55% | (2) 30" x 55% |
| Bale Saddles | - | - |
| Bale Guide Rollers | Standard (x2) | Standard (x2) |
| Hoop Speed | Adj. Flow Control Valve | Adj. Flow Control Valve |
* NOTE: BaleWrappers applying 8 layers - equipped with 20HP Engine, High flow pump, and Twin Wrap Kit.
- Wireless Plastic Sensor Shutdown Kit
- Remote Steer / Shut Down
- Remote Start
- LED Work Lights
- Bale Dispatch (Side Mounted Arm)
- Wireless Plastic Sensor Shutdown Kit
- Remote Steer / Shut Down
- Remote Start
- LED Work Lights
- Bale Dispatch (Side Mounted Arm)
- 20HP Engine
- Wireless Plastic Sensor Shutdown Kit
- Remote Steer / Shut Down
- Remote Start
- LED Work Lights
- Bale Dispatch (Side Mounted Arm)
- 20HP Engine
- Offset Twin Wrap (Std. on TL70)
- Dual Power Drive
- Laser Guidance System
Remote Steering and Shutdown Kit
This rugged remote allows you to start, shut down, and control your wrapper remotely.
Laser Guidance System
Tubeline’s new laser guided steering system makes small incremental adjustments to keep the wrapper tracking along the desired path. The laser constantly takes measurements and automatically makes steering adjustments to maintain the programed distance from another bale tube, fence line or even dense crops.
Night Working Light Kit (LED)
The night working light kit extends your working hours to ensure you get all your wrapping done no matter when you start.
Night Working Light Kit (Halogen)
The night working light kit extends your working hours to ensure you get all your wrapping done no matter when you start.
Guide Rollers
The guides rollers are located on the tail of the wrapper to help guide the bales after being wrapped, reducing risk of damage.
Single Hydraulic Power Drive
The single hydraulic power drive gives your wrapper's drive system more power to get through tough to drive through areas.
Dual Hydraulic Power Drive
The dual hydraulic power drive gives your wrapper's drive system more power to get through tough to drive through areas.
Offset Twin Wrap Kit
The Twin Wrap Kit holds two rolls of film and passes them through a single stretcher. This activates the wraps’ bonding compound to form a strong 2-Ply layer of film that stands up to tough hay stalks and folds them over, helping to prevent piercing of the wrap. The adjustable offset allows the leading edge of the wrap to be extended up to 4” providing increased overlap of plastic layers.
Film Sensor
The film sensor automatically shuts down the wrapper hoop when it detects a break in the film, or when the wrapper runs out of wrap.
Wireless Film Sensor
Using wireless technology, Tubeline’s Film Sensor TX can detect when your wrap breaks or runs out and automatically sends a shut-down signal to the machine. This ensures your bales don’t go through the hoop without proper coverage.
20HP Honda Engine c/w High Flow Pump
Honda Engines power the fluid through the hydraulic system ensuring efficient flow from the reservoir to valve body. The 20HP engine comes with a high flow pump providing an ample supply of fluid to the valve body.
Bale Dispatch Arm - Patented
Optional on select models, the integrated Bale Dispatch makes final bale push off even easier. Mounted to the side of the wrapper the spring assisted Bale Dispatch lowers across the tail to form a solid push bar. Once deployed, one cycle of the ram is enough to push the bale from the tail of the wrapper.
Road Flex Suspension Axle
Optional on select models, the Horst Wagons Road Flex suspension provides additional shock protection both when towing the wrapper down the road and when dropping heavy silage bales on the bed when wrapping.
