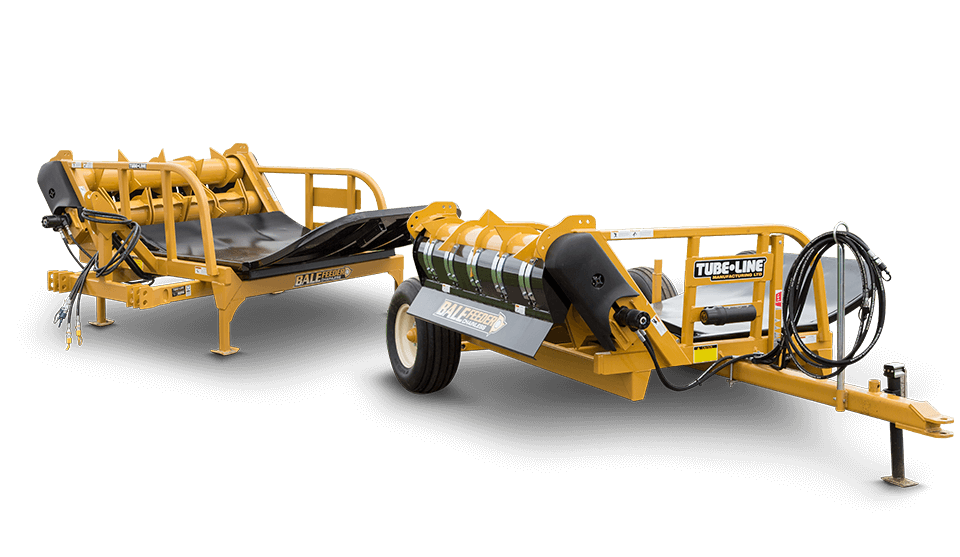

Tubeline Stationary Chainless BaleFeeders are ideal for custom rebaling operations. The units allow you to take large rounds off your field before the weather turns gray, and reprocess them as needed to suit customers' or your own needs.
Stationary Unit
- Fully stationary for rebaling
- Requires extra tractor to load bales
- Rigid 3PH mount for transport
Trailed Unit
- Trailed unit only-no loading system
- Requires extra tractor to load bales
The hydraulic bale platform on the 5000 Chainless BaleFeeders presses the bale into two rows of specifically designed rotors which unravel the bale as it spins, keeping the bales from tumbling or turning. The top rotor turn 3 times faster, fluffing the hay as it unravels.
Hydraulic Bale Platform
The platform keeps the bale tight against the rotors without the use of apron chains. 5000 Series
Varying Speed Rotors
The top rotor turns 3 times faster, fluffing the hay as the bale unravels. 5000 Series
| Specifications | BF5000 S | BF5000 T* |
|---|---|---|
| Unit Type | Stationary | Trailer* |
| Processing Type | Chainless | Chainless |
| Capacity | 4,000 lbs. | 4,000 lbs. |
| Size (W/L) | 100"/90" | 100"/150" |
| HP Required | 40 HP | 40 HP |
| Min. Pressure | 2,000 PSI | 2,000 PSI |
| Weight | 1,500 lbs. | 1,500 lbs. |
| For use with | Hay, Straw, Baleage,Silage | Hay, Straw, Baleage,Silage |
* Trailer only - No loading unit
Bale Bumper
The optional bale bumper helps to ensure the bale stays put on the table when in operation. 5000 Series
Square Bale Extension
The square bale extension gives your BaleFeeder the ability to feed square bales in addition to round bales. Quick and easy to attach, this extension is also adjustable allowing for feeding of a range of lengths of square bales.
