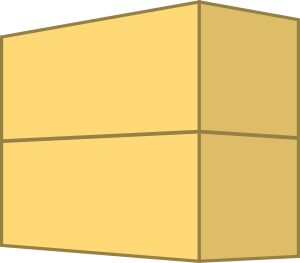

The oversized hoop not only allows you to wrap larger bales, but also allows 3'x4'x6' bales to be wrapped stacked two high. This not only reduces time and labour but also decreases operating and wrap costs increasing profitability.
Twin Wrap Kit
Tubeline's Twin Wrap Kit holds two rolls of film and passes them through a single stretcher. This activates the wraps' bonding compound to form a strong 2-Ply layer of film that stands up to tough hay stalks and folds them over helping to prevent piercing of the wrap.
By combining two sets of two rolls for a total of four, Tubeline's twin wrap kit provides all the same protection as four separate stretchers with the additional benefit of producing a more durable bonded 2-Ply film that stands up better than four single ply layers.
Film Snap - Patent Pending
Standard on all inline Balewrapper models, Tubeline’s Film Snap easily cuts wrap with a single action. Press and hold the Film Snap plunger located beside the operator’s panel until both the tensioners pass, triggering the cutting action. The Film Snap bar snaps into action safely cutting the wrap without stopping the cycle.
3 Year Warranty
Inline wrappers carry a 3 Year Limited Warranty. For more information please contact Tubeline Manufacturing.
ECV Exclusive Features
- Soft Start
- Bale Counter (Lifetime)
- Bale Counter (Resettable)
- Bale Presets
- Large Easy to Read Display
- Remote Engine Start
- Self-Diagnostics
- Single Joystick Control to drive/steer
Other Standard Features
- Main Control Panel Wired for Field Installed Options
- Safety Shut Off Switch on Guards
- Safety Shut Off Switch on Panel
- Retractable Tongue
- Folding Tongue
- 20HP Honda Engine with High Flow Pump
- Low Oil Alert on Engine
- Spark Arrestor on Engine
- Hydraulic Manifold
- Hydraulic Steering
- Temperature Gauge on Hydraulic Tank
- 25L / 6.6 USG Fuel Tank with Fuel Pump
- Limit Switches
- Adjustable Stroke Length on Charge Table
- Round to Square Bale Wrapper Conversion
- Roller Bed Locking Lever
- Electric over Hydraulic Controls
- Fully Automatic Cycling
- Automatically Idles Down When Cycle Completed
- Drive Wheel
- 30" Pre-Tensioners
- Wrap Carrier
- Lock Pin (Hoop)
- Roller Wheels
- Push Ram
- Push Ram Cylinders
- Cross Tube Unloading (to push off last bale) Patented
- King Pins with Tapered Bearings
- Cam Brakes
- Road Lights
- Remote Steering and Shutdown Kit (std. on 6500)
- Remote Engine Start (std. on 6500)
- 20HP Honda Engine Kit c/w High Flow Pump (Std. on 6500)
| Specifications | TL 6500 AX2 | TL 6500 ECV |
|---|---|---|
| Overall Length | 25' 6" | 25' 6" |
| Width | 10' 8" | 10' 8" |
| Height | 10' 7" | 10' 7" |
| Weight | 7,950 lbs. | 7,950 lbs. |
| Power | 20Hp Honda with High Flow Pump | 20Hp Honda with High Flow Pump |
| Electric Start | Standard | Standard |
| Alternator | 18 Amp. | 18 Amp. |
| Hydraulics | Self-contained | Self-contained |
| Controls | Electric over Hydraulic | Electric over Hydraulic |
| Tires | (4) 12.5 x 15 Highway Service | (4) 12.5 x 15 Highway Service |
| Tires with Power Drive | NA | NA |
| Quick Start Leveling | NA | NA |
| Brakes (Compactor) | Adjustable Cam Action | Adjustable Cam Action |
| Steering | Electric over Hydraulic | Electric over Hydraulic |
| Emergency Stop | E Stop Button | E Stop Button |
| Hydraulic Tail Gate | Standard | Standard |
| Transport Lights | Standard | Standard |
| Bale | ||
| Round | Up to 6' | Up to 6' |
| Square (Single) | 4' x 4' x 6' and 3' x 3' x 7' | 4' x 4' x 6' and 3' x 3' x 7' |
| Square (Double Stacked) | 3' x 3' x 6' to 3' x 4' x 6' | 3' x 3' x 6' to 3' x 4' x 6' |
| Film Stretcher | (2) 30" x 55% | (2) 30" x 55% |
| Bale Alignment | Adjustable Bale Guides | Adjustable Bale Guides |
| Bale Guide Rollers | Optional | Optional |
| Hoop Speed | Adj. Flow Control Valve | Adj. Flow Control Valve |
| Cycle Times* | ||
| 5' Round (66" Cycle Length) | 29 sec. | 29 sec. |
| 4' Round (54" Cycle Length) | 23 sec. | 23 sec. |
* NOTE: BaleWrappers applying 8 layers - equipped with 20HP Engine, High flow pump, and Twin Wrap Kit.
Hydraulic Power Drive
Both the single and dual hydraulic power drives give your wrapper's drive system more power to get through tough to drive through areas.
Guide Rollers
The guides rollers are located on the tail of the wrapper to help guide the bales after being wrapped, reducing risk of damage.
Night Working Light Kit (Halogen)
The night working light kit extends your working hours to ensure you get all your wrapping done no matter when you start.
Night Working Light Kit (LED)
The night working light kit extends your working hours to ensure you get all your wrapping done no matter when you start.
Film Sensor
The film sensor automatically shuts down the wrapper hoop when it detects a break in the film, or when the wrapper runs out of wrap.
Wireless Film Sensor
Using wireless technology, Tubeline’s Film Sensor TX can detect when your wrap breaks or runs out and automatically sends a shut-down signal to the machine. This ensures your bales don’t go through the hoop without proper coverage.
Laser Guidance System
Tubeline’s new laser guided steering system makes small incremental adjustments to keep the wrapper tracking along the desired path. The laser constantly takes measurements and automatically makes steering adjustments to maintain the programed distance from another bale tube, fence line or even dense crops.
